High Purity & Density: With a purity of over 99.999%, it features a dense, pore-free surface, excellent hermeticity, and an extremely low helium permeability of 1×10⁻¹⁰ cm³/s.
High Temperature Resistance & Thermal Properties: It withstands temperatures up to 2200℃, with its strength increasing as temperature rises. It exhibits exceptional thermal shock resistance and anisotropic thermal conductivity (60 W/m·K in the a-direction at 200℃, and only 2.60 W/m·K in the c-direction).
Chemical Inertness: It is resistant to corrosion by acids, alkalis, salts, and organic reagents, and demonstrates non-wetting behavior and no reactivity with most molten metals and semiconductor materials.
Electrical & Special Properties: It possesses high electrical resistivity (2.4×10¹⁵ Ω·cm), high dielectric strength (56 KV/mm at room temperature), a low dielectric constant, and a low dielectric loss tangent, along with excellent transmissivity to microwaves and infrared radiation.
Anisotropy & Mechanical Properties: It shows pronounced anisotropy in mechanical, thermal, and electrical properties, with a tensile strength of 102 N/mm² and a bending strength of 243 N/mm².
| Properties | Unit | Value |
|---|---|---|
| Density | g/cm³ | 1.95–2.20 |
| Tensile Strength | N/mm² | 102 |
| Flexural Strength | N/mm² | 243 |
| Compressive Strength | N/mm² | 244 |
| Thermal Conductivity (200°C) | W/(m·K) | 60 (a) / 2.60 (c) |
| Thermal Expansion Coefficient (200°C) | K⁻¹ | 2.0 × 10⁻⁶ (a) |
| Dielectric Constant (Room Temperature) | — | 5.81 |
| Electrical Resistivity | Ω·cm | 2.4 × 10¹⁵ |

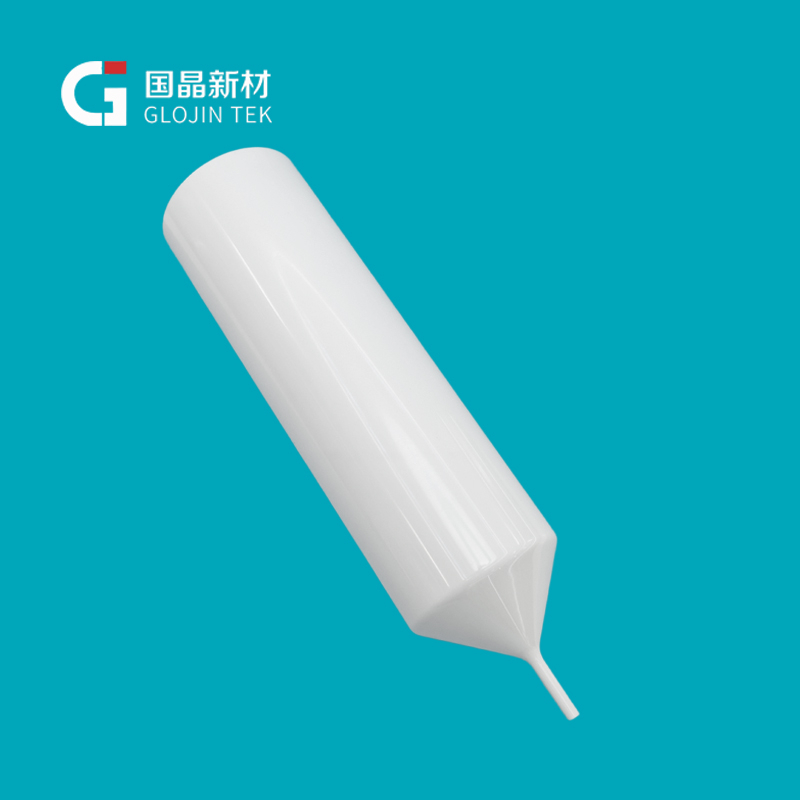

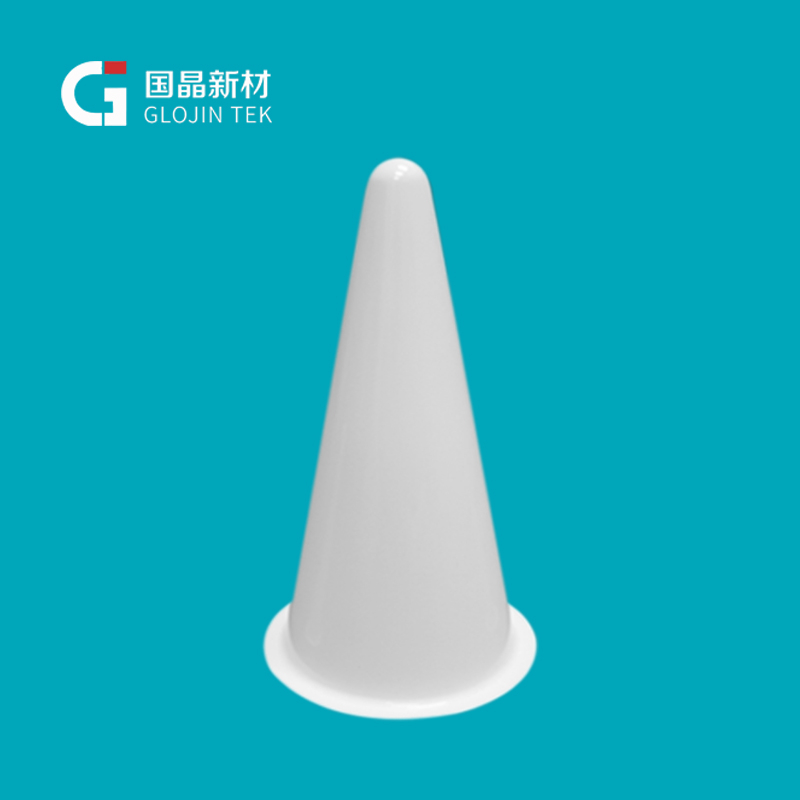

Semiconductor Crystal Growth: Used as crucibles for the LEC, VGF, VB, and MBE methods in the growth of III-V compound semiconductor single crystals such as GaAs, InP, and GaP. Its high purity and chemical inertness prevent melt contamination.

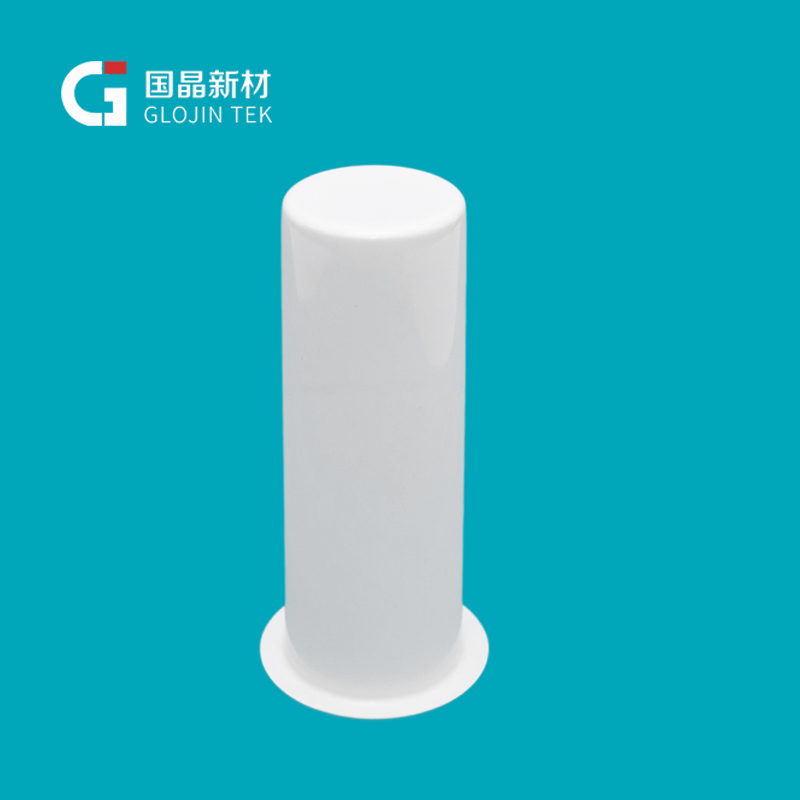

OLED Evaporation Sources: Used as evaporation crucibles and support frames in OLED production, providing high insulation, high-temperature stability, and outgassing-free performance.
High-Temperature Protective Coatings: Applied as PBN coatings on graphite heaters, graphite crucibles, etc., to prevent high-temperature volatilization and contamination.
Special Metallurgy & Melting: Used as crucibles for high-purity metal evaporation coating and melting, resistant to and non-reactive with various molten metals.
Electronic Devices & Windows: Used in traveling wave tube (TWT) support rods, MOCVD insulation plates, and infrared/microwave transmission windows, utilizing its insulation, wave-transmission, and high-temperature stability properties.
Aerospace & Vacuum Equipment: Used as insulation components in high-temperature vacuum furnaces, high-temperature insulating fluid nozzles, etc., to meet requirements for thermal insulation, electrical insulation, and structural stability under extreme environments.
