PBN Coatings

Characteristic

High Purity and Density: Purity up to 99.999% or higher, dense and non-porous surface, excellent airtightness, and helium permeability as low as 1×10⁻¹⁰ cm³/s.

High-Temperature Resistance and Thermal Performance: Withstands high temperatures up to 2200℃, and its strength increases with rising temperature. It has excellent thermal shock resistance and anisotropic thermal conductivity (60 W/(m·K) in the a-direction at 200℃, and only 2.60 W/(m·K) in the c-direction).

Chemical Inertness: Resistant to corrosion by acids, alkalis, salts and organic reagents; non-wetting and non-reactive with most molten metals and semiconductor materials.

Electrical and Special Properties:High resistivity (2.4×10¹⁵ Ω·cm), high dielectric strength (56 kV/mm at room temperature), low dielectric constant and dielectric loss tangent, as well as good microwave and infrared transmission performance.

Anisotropy and Mechanical Properties: Shows significant anisotropy in mechanical, thermal and electrical properties; tensile strength is 102 N/mm², and flexural strength is 243 N/mm².

Parameter

Performance Performance Unit Value
Density Density g/cm³ 1.95-2.20
Tensile Strength Tensile Strength N/mm² 102
Flexural Strength Flexural Strength N/mm² 243
Compressive Strength Compressive Strength N/mm² 244
Thermal Conductivity (at 200℃) W/(m·K) 60 (a-direction); 2.60 (c-direction)
Coefficient of Thermal Expansion (at 200℃) T.α/(1/K) 2.0×10⁻⁶ (a-direction)
Dielectric Constant (Room Temperature) Dielectric Constant (Room Temperature) / 5.81
Resistivity Resistivity Ω·cm 2.4×10¹⁵

Application field solutions

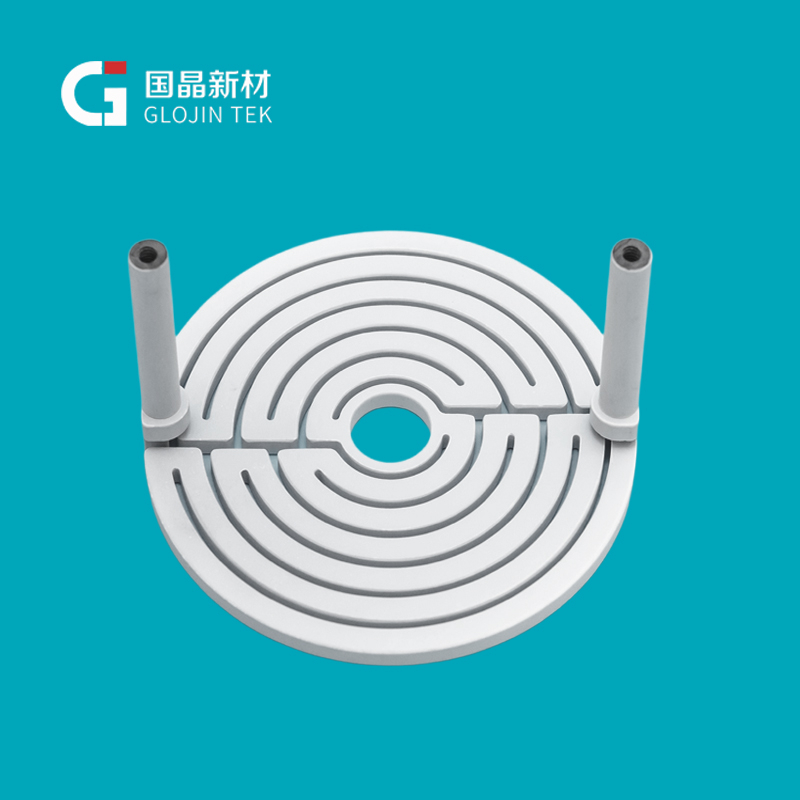

High-Temperature Heating and Insulation Components:PBN/PG (Pyrolytic Graphite) composite heater coatings, used in processes such as wafer annealing, featuring good heating uniformity and long service life.Insulating coatings for graphite heaters, insulating plates in MOCVD systems, and insulating components in high-temperature vacuum furnaces.Insulating protection tubes for high-temperature thermocouples, providing good airtightness, corrosion resistance and thermal shock resistance.

Special Metallurgy and Processing:PBN coatings for special-shaped graphite parts or metal parts, providing a high-temperature resistant and corrosion-resistant protective layer.
